Bare Core
Cell 6–19 mm · foil 40–80 µm · blocks or slices
Expanded 3003 core supplied as block or cut slice. Cell size and foil gauge are chosen from the shear load, not from what is in stock.

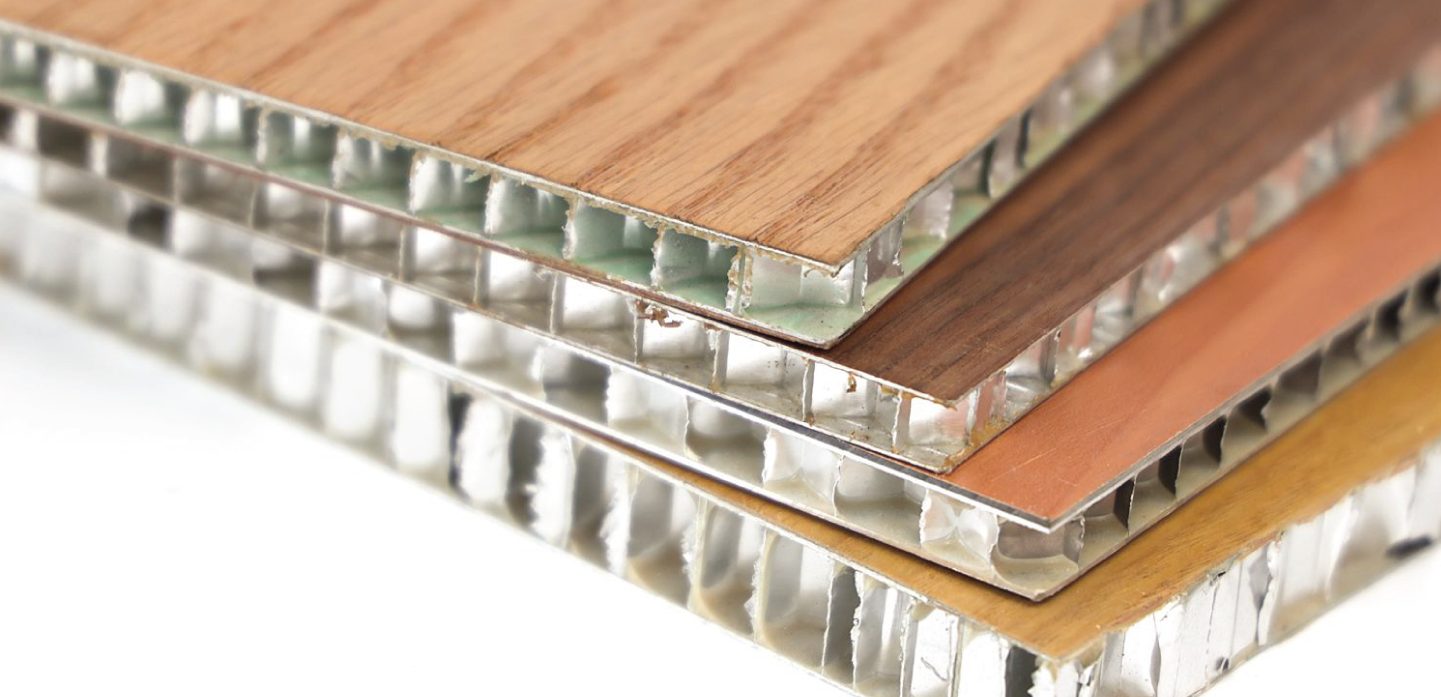

Honeycomb buys stiffness per kilogram.
A 25 mm bonded panel is roughly the bending stiffness of 12 mm solid aluminium at about a fifth of the weight, which is why it ends up in lifts, ceilings and vehicle interiors.
5 products in this family
Bonded Panel
10–50 mm · skins 0.7–1.5 mm · to 1.5 × 4 m
Core bonded between aluminium skins on a heated press. Flatness holds within 0.5 mm per metre after cure.
Lift Car Panel
Class A2 · stainless or anodised face · edge-sealed
Panels for lift cars and doors, where the weight saved comes straight off the counterweight and the motor duty.
Ceiling Raft
Perforated face · acoustic fleece · NRC to 0.85
Perforated face with a fleece backing behind the core. Perforation pattern is set from the absorption target for the room.
Vehicle Floor Panel
Non-slip face · 25–40 mm · point load 300 kg
Bus and rail floor panel with a bonded non-slip face. Rated for a 300 kg point load on a 100 mm footprint.
